A professional OBD2 engine diagnostics tool compatible with Wi-Fi/Bluetooth ELM327 adapters

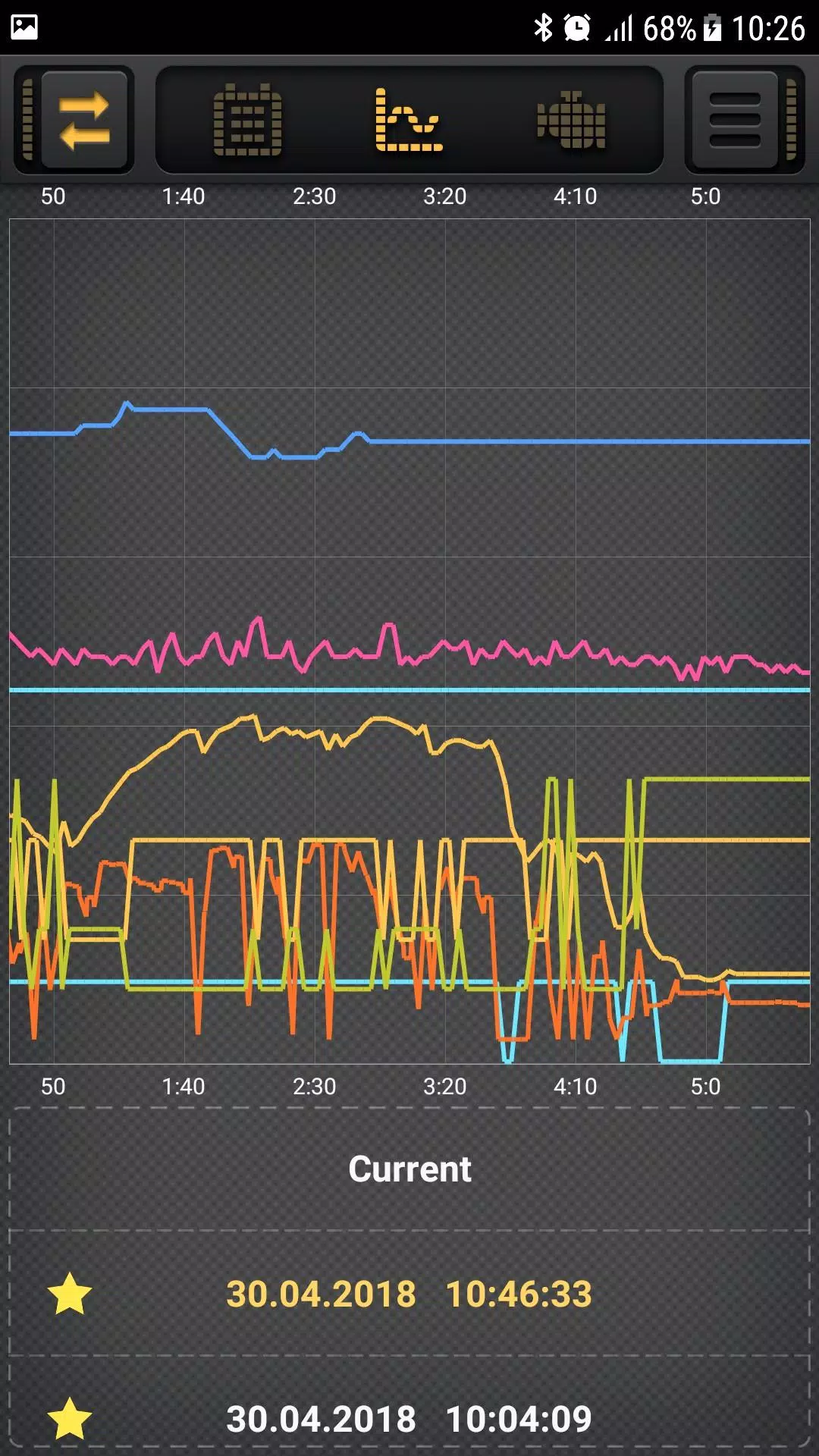

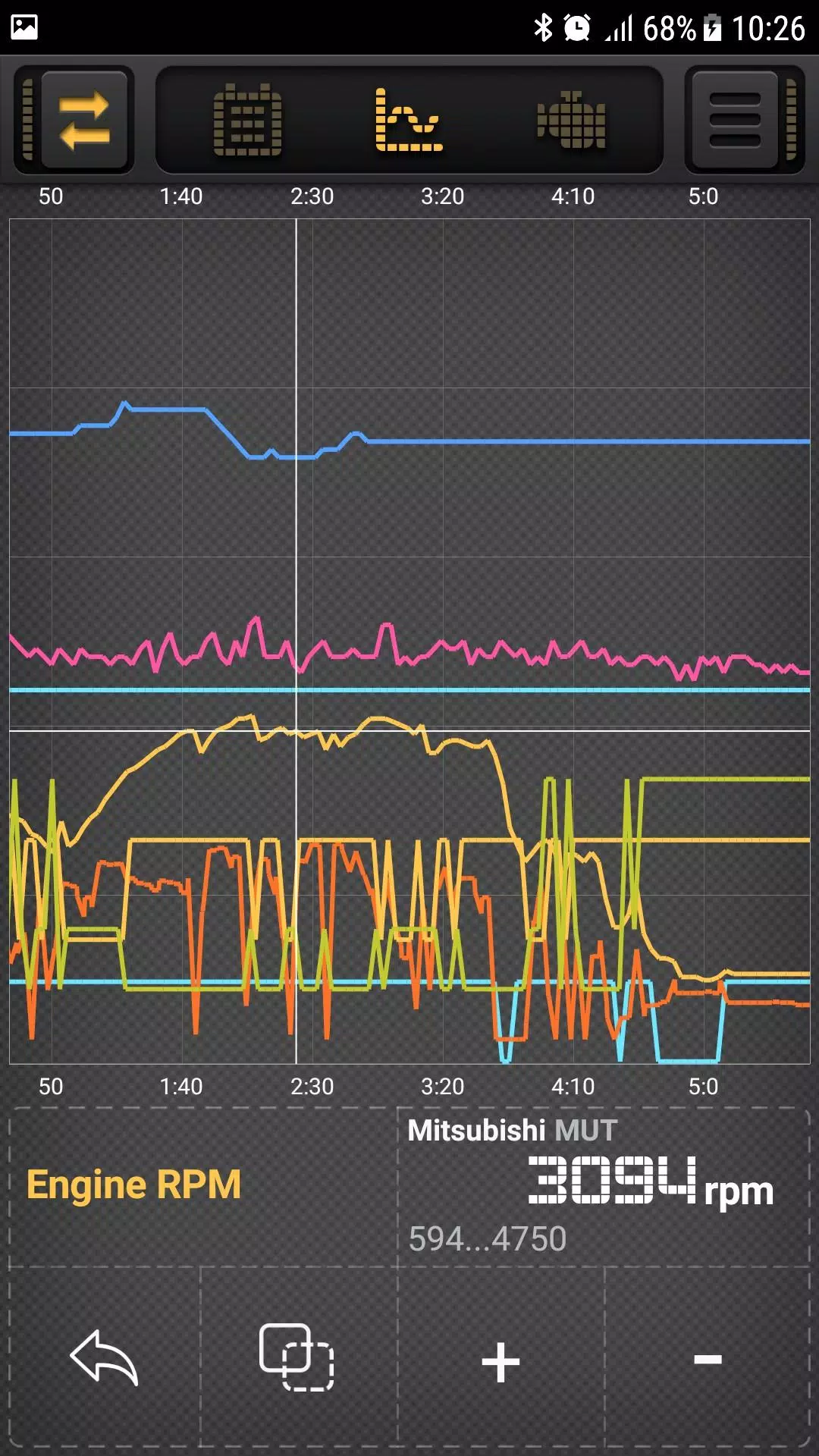

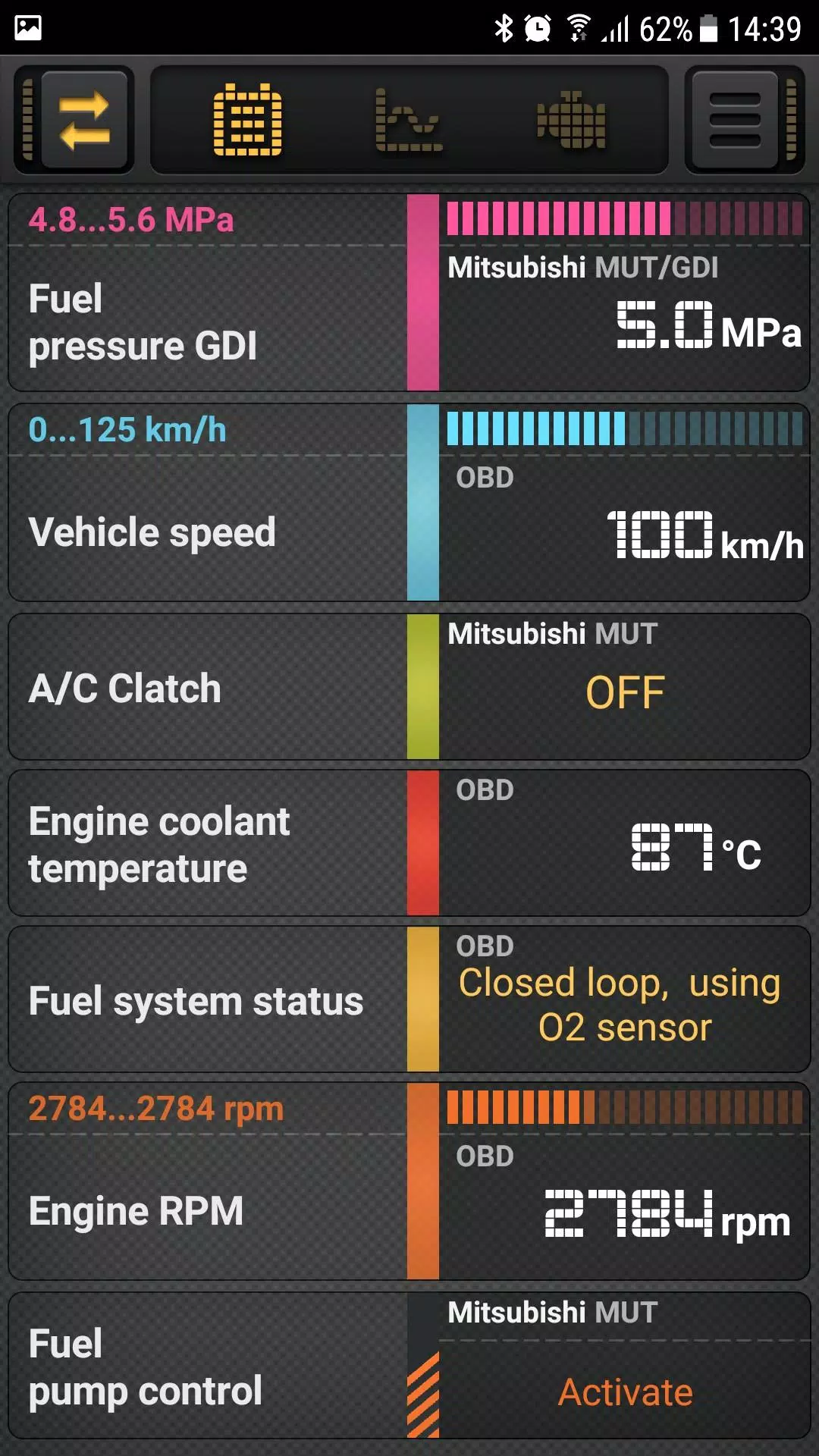

This automotive diagnostic app enables real-time vehicle data monitoring through an ELM327 OBDII adapter. It visualizes sensor readings graphically, stores historical data for later review, and identifies/resets engine fault codes (DTCs).
Customizable sensor thresholds alert you when values exceed predefined min/max limits.
Compatible with both Bluetooth and Wi-Fi ELM327 OBD adapters.
For optimal performance, use adapters version V1.5-V2.1 (later versions may exhibit compatibility issues).
Important Notice:
ELM327 devices only support OBD2-compliant vehicles:
• US models manufactured after 1996
• European gasoline vehicles after 2001; diesel after 2003
• Japanese vehicles circa 2000
Beyond standard OBDII parameters, extended diagnostics are available for specific manufacturers:
Currently supported brands include:
BMW - (DIESEL, E91+AT)
BYD - (MT20U, ABS)
Chery - (MT20U, MT20U2, ActecoME797)
Chrysler/Dodge - (DIESEL, AT)
Citroen - (C4, C5, Sagem2000, CAN/AT6, EDC16C3 , MEV17.4.2)
Daewoo - (SiriusD42)
Fiat - (IAW49F, IAW5SF)
Ford - (ECU, PWM/AT, PWM/ABS, CAN/DIESEL, CAN/AT, CAN/TPMS, CAN/ABS )
Geely - (MT20U, MT20U2, M797)
GM/Chevrolet/Pontiac - (ECU, AT, ABS, SiriusD42)
GreatWall - (MT20U2, EOBD, CAN/4D20)
Honda - (Fit, Accord, CRV/DIESEL, Insight)
Jeep - (ECU, DIESEL, AT, TPMS)
KIA, Hyundai -~15 PIDs for each model(ATF Temperature,
Knock detected and etc)
Land Rover - (RANGE/3.6L, DISC4/3.0L, DISC3/TD6, FL2/TD4)
Lifan - (MT20U, MT20U2, ActecoME797, ME1788, ABS)
Mazda - (ECU, AT, ABS, CAN/TPMS, CAN/SWA)
Mercedes - (W203/CDI, W169/CVT, W168)
Mitsubishi - (CAN/ECU, CAN/CVT, CAN/SS4II, CAN/AWC, MUT/OBD, MUT/GDI)
(Note: Pre-2000 Mitsubishi models typically lack OBD2 support
making them incompatible with ELM327)
Nissan - (CAN/ECU, CAN/CVT, CAN/AWD, CAN/METER, CONSULT2)
Opel - (ECU, AT, ABS, X18XE, Z16XE, Y17DT, CDTI1.6L, CDTI1.3L)
Peugeot - (MEV17.4.2, EDC16C3, ME744, AL4/CAN, AL4/KWP)
Renault - (CAN/ECU, CAN/DIESEL, KWP/DIESEL, Sagem2000, KWP/EMS3132)
Skoda - (CAN UDS TSI/TFSI)
SsangYong - (KWP/ECU, KWP/AT5, D20DT, CAN/D20DTF, CAN/DSI6)
Subaru - (ECU, ECU/DIESEL, SSM2, SSM2/DIESEL, SSM2/AT, KWP/ABS)
Suzuki - (CAN/ECU, KWP/ECU)
Toyota - (CAN/ECU, KWP/ECU, Prius10,Prius20,Prius30/Alpha,Prius30/AC)
VAG - (TDI/2.5L, CAN UDS TSI/TFSI)
Volvo - (D5/P3)
VAZ - (Yanvar 7.2, Itelma VS5.1 R83, Itelma M73, Itelma M74
KWP/CAN, AT/JATCO, AMT/ZF, Vesta/Largus K4M,H4M)
GAZ - (MIKAS10.3/11.3, MIKAS11/E2)
ZAZ - (MIKAS10.3/11.3, MR140)
UAZ - (MIKAS10.3/11.3, MIKAS11/E2, M86CAN)
Compatibility list continuously updated with new models and parameters.
Note: Not all listed PIDs may be available for your vehicle. Configure preferred parameters in Settings > PID Types.

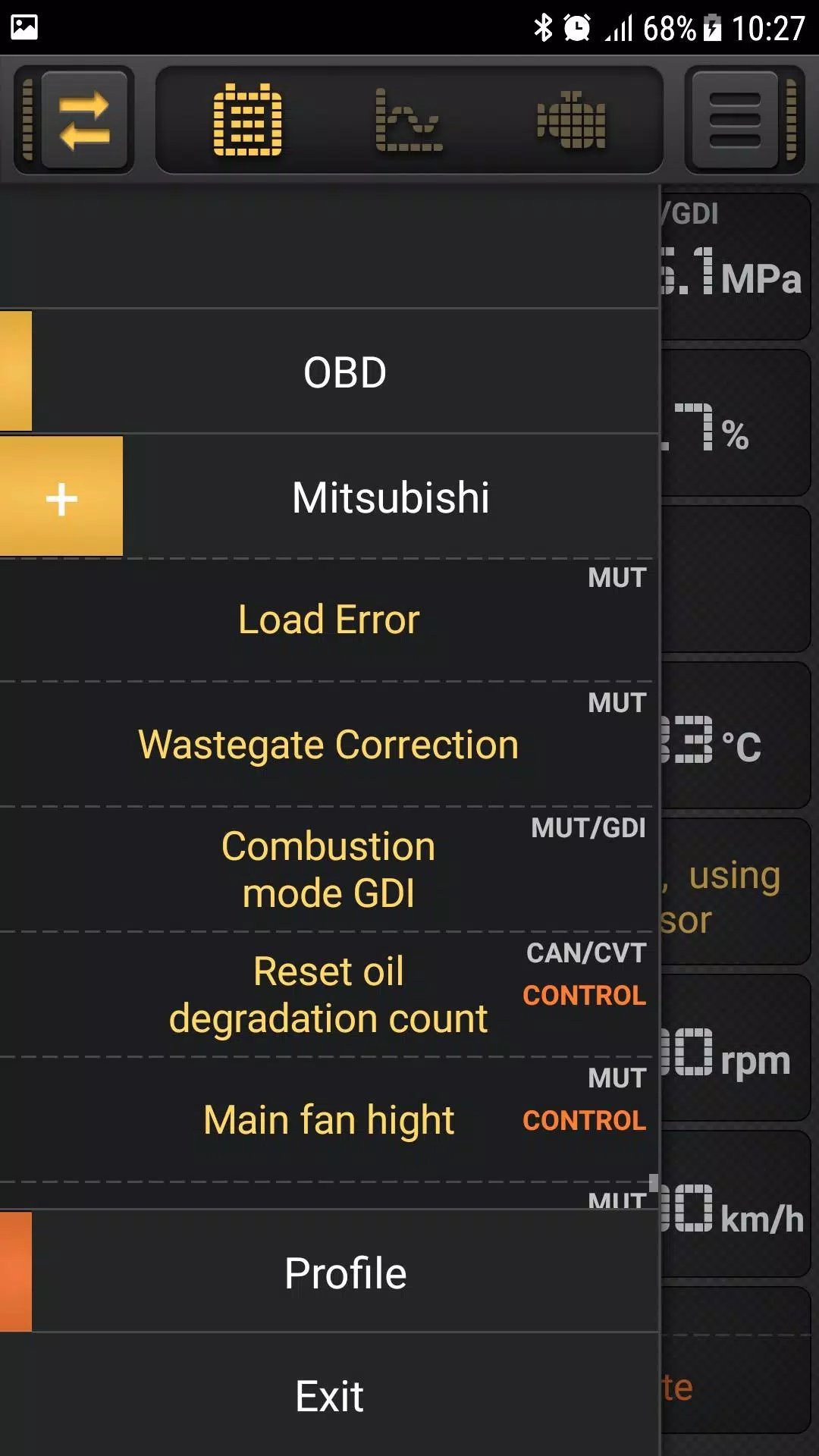

Advanced control functions (e.g., activating cooling fans or fuel pumps) available for select Mitsubishi models.
For Mitsubishi CAN-bus models (Montero/Pajero IV, Outlander 2, etc.), create an ISO 9141-2 protocol profile for MUT parameter reading and actuator control, while maintaining ISO 15765-4 CAN (11bit 500K) or Auto protocol for other functions.
Note: Some Mitsubishi CAN-bus models don't support ISO 9141-2 connectivity.
Extensive customization options available for creating custom parameters.
What's New in Version 3.5.9
Updated: September 30, 2024
This update includes performance enhancements and minor bug fixes. Update now for optimal performance.
